Laboratory: soil hydraulic characteristics

The extended evaporation process (EEM) with HYPROP (HYdraulic PROPerty analyzer) as a measuring device enables the simultaneous process analysis of the water retention curve (pF curve), the unsaturated hydraulic conductivity function (K-function) and the dry bulk density of core cylinder samples (100 and 250 cm3) in the laboratory. In addition, hysteresis and shrinkage can be quantified.

Measuring principle:
The soil sample is saturated with water. Two tensiometers are placed in the sample (Figure 1), the sample is placed on a scale, the sample surface is exposed to free evaporation, and the tension and the sample mass are measured at regular intervals with the HYPROP system. The data recording and evaluation (Fig. 2) are computer-based

Measuring range: 0 to 6000 hPa
Measuring time: 2 to 10 days
Measuring accuracy: 1 hPa

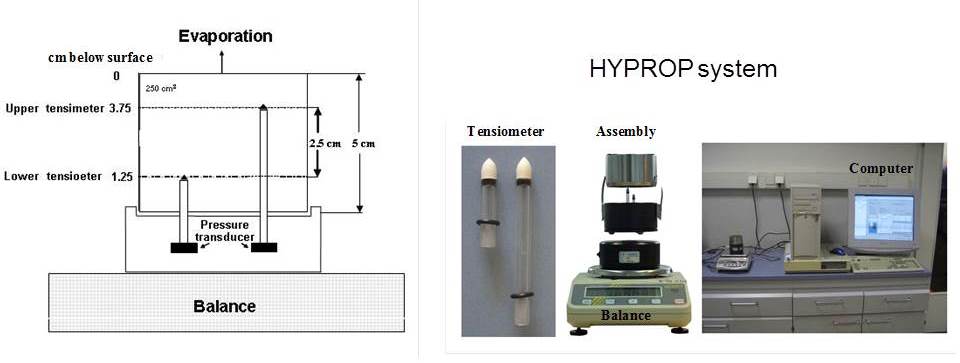

Fig. 1: Evaporation process: left – schematic diagram, right – HYPROP (Photo Assembly: UMS GmbH Munich)

Fig. 2: Screenshot from HYPROP Fit Software (UMS GmbH Munich)
